Understanding 10mm Drag Chains Essential Components in Cable Management

In the realm of modern machinery and robotics, effective cable management is crucial for ensuring the longevity and efficiency of equipment. One of the most vital components in this regard is the drag chain, which guides and protects cables and hoses in moving applications. This article will delve into the specifics of 10mm drag chains, exploring their design, functionality, applications, and advantages.

What is a Drag Chain?

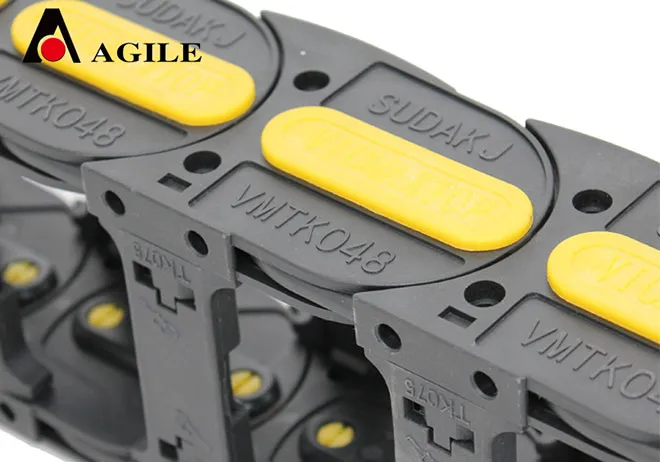

Drag chains, also known as cable carriers or energy chains, are specialized devices used to organize and protect moving cables and hoses. They enable unrestricted movement while ensuring that the cables are not damaged, tangled, or subjected to excessive wear. A typical drag chain consists of a series of interconnected links, forming a flexible pathway for the cables as they travel back and forth during operation.

The Importance of Size 10mm Drag Chains

The designation 10mm refers to the specific width of the drag chain, which measures 10 millimeters across. This size is particularly suitable for applications that require compact cable management solutions without compromising on flexibility and durability. The choice of chain size often depends on the type and number of cables being housed, the space constraints of the machinery, and the operational dynamics involved.

10mm drag chains are typically designed to accommodate various cables, including power cables, communication cables, and pneumatic hoses. Their compact size makes them ideal for applications in tight spaces or smaller machinery, where larger chains would be impractical.

Key Features of 10mm Drag Chains

1. Durable Material Most 10mm drag chains are made from high-quality plastic or nylon, ensuring they are lightweight yet robust enough to withstand daily wear and tear. The materials are often resistant to chemicals and UV exposure, making them suitable for a variety of environments.

2. Flexible Design The links in a 10mm drag chain are engineered to flex and adapt to the movements of the machinery. This flexibility allows for smooth operation even in multi-axis motion systems.

3. Easy Installation These chains are designed for quick and straightforward installation, often utilizing mounting brackets and other hardware that simplify the setup process.

4. Versatile Applications 10mm drag chains are versatile components widely used in CNC machines, industrial robots, conveyor systems, and printing machines. Their adaptability allows them to be integral to various industries, including manufacturing, automation, and material handling.

The Benefits of Using 10mm Drag Chains

The adoption of 10mm drag chains in cable management offers several advantages

1. Improved Cable Life By providing a protective enclosure, these chains significantly reduce the risk of cable abrasion and damage, thereby extending the lifespan of the cables.

2. Enhanced Safety Cables that are neatly organized within a drag chain minimize the risks of tripping hazards in the workplace, contributing to overall workplace safety.

3. Increased Efficiency A well-managed cable system reduces downtime caused by cable failure or maintenance, leading to enhanced operational efficiency.

4. Customizability 10mm drag chains can often be customized in length and configuration to meet specific application needs, offering tailored solutions for various machine designs.

Conclusion

In summary, 10mm drag chains play a pivotal role in the world of cable management, particularly in applications where space is at a premium. Their durability, flexibility, and ease of installation make them an excellent choice for ensuring that cables and hoses are protected and organized. As technology continues to advance and machinery becomes more complex, the importance of effective cable management solutions like 10mm drag chains will undoubtedly grow. Whether in industrial settings or in sophisticated robotic systems, these components ensure that operations remain smooth, safe, and efficient.
